Thread: Kimbo's meditation hut / mini sauna

  1. #1
    Fluidic Kimbo's Avatar
    Fluidic Kimbo is offline Morale Officer (de facto)
    Join Date
    Jul 2009
    Posts
    3,701

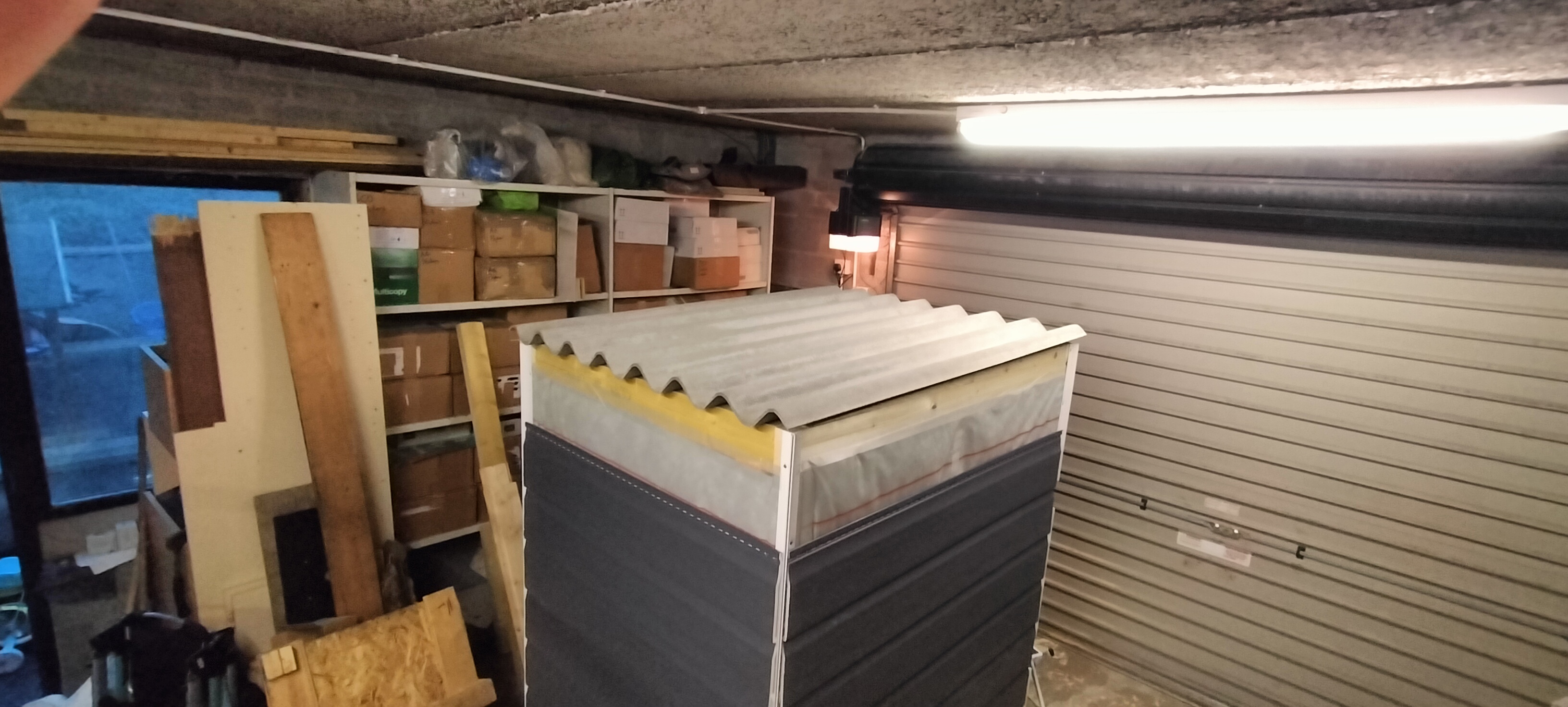

    Cool Kimbo's meditation hut / mini sauna

    A friend of mine has a garage around the back of his house, so every Friday evening we work together on my hut.

    I think we've done 5 Friday's so far.

    Frame = Treated 2x4 lumber. Height = 160cm. Length x Width = 105 x 130cm.

    Inner wall = 19mm thick tongue and groove wood

    5cm of acoustic insulation + 15cm of thermal insulation

    Outer Cladding= Rigid durable PVC

    Roof = Fiber cement sheet

    A castor wheel at each corner on the base

    Click image for larger version.

Name:	IMG_20220906_185437.jpg
Views:	38
Size:	492.5 KB
ID:	182120
    Click image for larger version.

Name:	IMG20220909192055.jpg
Views:	46
Size:	1.53 MB
ID:	182121
    Click image for larger version.

Name:	IMG20220916215422.jpg
Views:	60
Size:	961.5 KB
ID:	182122
    Click image for larger version.

Name:	IMG20220923210702.jpg
Views:	45
Size:	672.3 KB
ID:	182123
    Click image for larger version.

Name:	IMG20220923221556.jpg
Views:	55
Size:	1.35 MB
ID:	182124
    Click image for larger version.

Name:	IMG20220930191233.jpg
Views:	64
Size:	989.7 KB
ID:	182125
    Click image for larger version.

Name:	IMG20220930191311.jpg
Views:	66
Size:	1.05 MB
ID:	182119

  2. #2
    almostgone's Avatar
    almostgone is online now AR-Platinum Elite- Hall of Famer
    Join Date
    Jun 2004
    Location
    the lower carolina
    Posts
    26,402
    Ok. What's powering this thing? I see what looks like top post clamps for an automotive battery?
    There are 3 loves in my life: my wife, my English mastiffs, and my weightlifting....Man, my wife gets really pissed when I get the 3 confused...
    A minimum of 100 posts and 45 days membership required for source checks. Source checks are performed at my discretion.

  3. #3
    Fluidic Kimbo's Avatar
    Fluidic Kimbo is offline Morale Officer (de facto)
    Join Date
    Jul 2009
    Posts
    3,701
    Quote Originally Posted by almostgone View Post
    Ok. What's powering this thing? I see what looks like top post clamps for an automotive battery?

    12V marine battery. There is a 10-inch tall cavity in the floor which will house a 12V battery and a 300W heater.

    Considering putting a solar panel or wind turbine on the roof to trickle-charge the battery.

  4. #4
    lovbyts's Avatar
    lovbyts is offline Knowledgeable Member
    Join Date
    Apr 2008
    Posts
    30,261

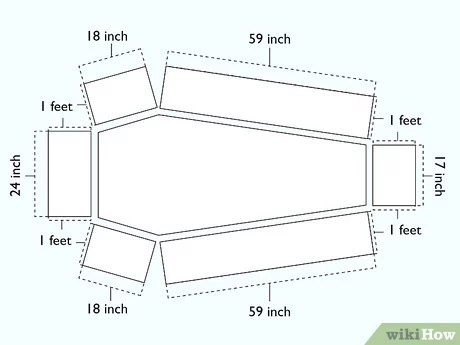

    I know a better design.

    Click image for larger version.

Name:	v4-460px-Make-a-Coffin-Step-5-Version-2.jpg
Views:	36
Size:	29.8 KB
ID:	182127
    Last edited by lovbyts; 10-02-2022 at 09:57 PM.
    Cylon357 and Honkey_Kong like this.

  5. #5
    almostgone's Avatar
    almostgone is online now AR-Platinum Elite- Hall of Famer
    Join Date
    Jun 2004
    Location
    the lower carolina
    Posts
    26,402
    Quote Originally Posted by lovbyts View Post
    I know a better design.
    Click image for larger version.

Name:	v4-460px-Make-a-Coffin-Step-5-Version-2.jpg
Views:	36
Size:	29.8 KB
ID:	182127
    LOL, I was looking at the panels to be cut and thought to myself.....hmm, looks like a coffin/ bed for skull orchard. Then I saw the title in small script @ the lower corner.
    lovbyts likes this.
    There are 3 loves in my life: my wife, my English mastiffs, and my weightlifting....Man, my wife gets really pissed when I get the 3 confused...
    A minimum of 100 posts and 45 days membership required for source checks. Source checks are performed at my discretion.

  6. #6
    almostgone's Avatar
    almostgone is online now AR-Platinum Elite- Hall of Famer
    Join Date
    Jun 2004
    Location
    the lower carolina
    Posts
    26,402
    Quote Originally Posted by Fluidic Kimbo View Post
    12V marine battery. There is a 10-inch tall cavity in the floor which will house a 12V battery and a 300W heater.

    Considering putting a solar panel or wind turbine on the roof to trickle-charge the battery.
    I think the solar panel would be a good option if y'all get enough sunny days. Wind turbines seems to woefully inefficient in the long run.
    There are 3 loves in my life: my wife, my English mastiffs, and my weightlifting....Man, my wife gets really pissed when I get the 3 confused...
    A minimum of 100 posts and 45 days membership required for source checks. Source checks are performed at my discretion.

  7. #7
    Fluidic Kimbo's Avatar
    Fluidic Kimbo is offline Morale Officer (de facto)
    Join Date
    Jul 2009
    Posts
    3,701
    Quote Originally Posted by almostgone View Post
    I think the solar panel would be a good option if y'all get enough sunny days. Wind turbines seems to woefully inefficient in the long run.
    Sometimes we get a belter of a Summer in Ireland, but for the most part we're a cloudy rainy country.

    Here's the ironic thing about the solar panel:
    The season when we have the most sunshine = Summer
    The season when we need to generate heat = Winter

    I've been in contact with a solar panel supplier in the UK, and he has a 200W solar panel that will fit on the roof of my hut. I presume though, when he says "200 watts", that he means leaving it out at noon in the Sahara desert. I'd say there's very little power from it on a typical Irish Winter day.

    But even if I could get an average of 10 - 20 watts from it, that might be enough to keep the battery topped up.

    Actually I want to explore my options here for stepping 12V DC up to 120V AC. There are very few 12V heaters on the market, and their reviews are poor. Of course I have to calculate and consider the power lost from the conversion.

    I got a 40 amp fuse for the battery just in case I accidentally short it.

  8. #8
    Fluidic Kimbo's Avatar
    Fluidic Kimbo is offline Morale Officer (de facto)
    Join Date
    Jul 2009
    Posts
    3,701
    There are very few 12V DC electric heaters on the market, and the reviews are poor.



    If I were working with 230V AC instead, I would have a lot more choice. There are some very good 230V AC heaters.

    So I'm thinking of using a device such as the following to get 230V AC from a marine battery:

    https://www.amazon.co.uk/dp/B07Y89NBPQ/?th=1

    I wonder how efficient this device would be though, I wonder would I lose a few watts in it?

  9. #9
    almostgone's Avatar
    almostgone is online now AR-Platinum Elite- Hall of Famer
    Join Date
    Jun 2004
    Location
    the lower carolina
    Posts
    26,402
    Quote Originally Posted by Fluidic Kimbo View Post
    There are very few 12V DC electric heaters on the market, and the reviews are poor.



    If I were working with 230V AC instead, I would have a lot more choice. There are some very good 230V AC heaters.

    So I'm thinking of using a device such as the following to get 230V AC from a marine battery:

    https://www.amazon.co.uk/dp/B07Y89NBPQ/?th=1

    I wonder how efficient this device would be though, I wonder would I lose a few watts in it?
    Pretty sure there would be a decent loss. Usually when they say the output is a modified sine wave, it's really a modified square wave. If you look at the waveform, it has an additional step up (square wave) on top of the longer (timewise) square wave.

    I honestly don't know how effective that would be.
    There are 3 loves in my life: my wife, my English mastiffs, and my weightlifting....Man, my wife gets really pissed when I get the 3 confused...
    A minimum of 100 posts and 45 days membership required for source checks. Source checks are performed at my discretion.

  10. #10
    Fluidic Kimbo's Avatar
    Fluidic Kimbo is offline Morale Officer (de facto)
    Join Date
    Jul 2009
    Posts
    3,701
    Quote Originally Posted by almostgone View Post
    Pretty sure there would be a decent loss. Usually when they say the output is a modified sine wave, it's really a modified square wave. If you look at the waveform, it has an additional step up (square wave) on top of the longer (timewise) square wave.

    I honestly don't know how effective that would be.
    Any wasted power would be in the form of heat . . . which is what I want

  11. #11
    almostgone's Avatar
    almostgone is online now AR-Platinum Elite- Hall of Famer
    Join Date
    Jun 2004
    Location
    the lower carolina
    Posts
    26,402
    Quote Originally Posted by Fluidic Kimbo View Post
    Any wasted power would be in the form of heat . . . which is what I want
    True if the heat is in the hut. If it's all in the inverter it may not contribute much. Plus not all of the inefficiency will be manifest as heat.
    Not saying dont try it, but try to consider all your options.one thing in your favor is the volume of the area you're heating up. It's compact which should help.

    Please keep posting up as you progress. A sauna is about the only thing I miss from a commercial gym. I'd love to have one, but I'm not paying the prices the companies sell them for.
    There are 3 loves in my life: my wife, my English mastiffs, and my weightlifting....Man, my wife gets really pissed when I get the 3 confused...
    A minimum of 100 posts and 45 days membership required for source checks. Source checks are performed at my discretion.

  12. #12
    Cchlckd is offline New Member
    Join Date
    Nov 2022
    Posts
    19
    Look into lithium automotive battery if you plan on running a heater.

  13. #13
    Fluidic Kimbo's Avatar
    Fluidic Kimbo is offline Morale Officer (de facto)
    Join Date
    Jul 2009
    Posts
    3,701
    I have the hut out my back garden now:


  14. #14
    Fluidic Kimbo's Avatar
    Fluidic Kimbo is offline Morale Officer (de facto)
    Join Date
    Jul 2009
    Posts
    3,701
    Click image for larger version.

Name:	IMG20230618212359.jpg
Views:	32
Size:	1.94 MB
ID:	182589

    Click image for larger version.

Name:	IMG20230620163616.jpg
Views:	34
Size:	1.37 MB
ID:	182590

    Now with a power point at the front, as well as latches and handles. Door frame is almost entirely soundproofed -- just a little more work to do on it.
